The “Grinding” Trap
Walk into any traditional steel structure workshop, and you hear it: the deafening scream of angle grinders. You see it: clouds of metal dust and workers hunched over heavy steel plates, manually grinding flame-cut edges.
It looks like hard work. But in 2026, it’s just wasted money.
For decades, fabricators accepted that preparing plate edges meant either:
- Flame/Plasma Cutting: Fast, but leaves a messy edge with a Heat Affected Zone (HAZ) that must be ground off.
- Manual Grinding: Slow, inconsistent, and a massive health & safety liability.
Enter Plate Edge Milling.
Imagine a machine that clamps onto the edge of your plate, travels automatically along the length, and shears the metal off in quiet, cold chips—leaving a mirror-finish surface at exactly 45°. No dust. No noise. No heat.
This guide explains why shifting to cold milling is the biggest efficiency upgrade you can make this year—and how to choose the right plate beveling machine for the job.
The “Physics” of Plate Beveling: Milling vs. Thermal Cutting
The biggest misconception in plate processing is that “a bevel is just a bevel.” It’s not. How you make the bevel determines how well it welds.
| Method | Edge Quality | HAZ (Heat Affected Zone) | Secondary Process? | Speed |
|---|---|---|---|---|
| Flame/Plasma | Rough / Oxidized | Severe (Hardened edge) | YES (Must grind off oxide/HAZ) | Fast Cut, Slow Prep |
| Manual Grinding | Inconsistent | High (Friction heat) | No | Painfully Slow |
| Edge Milling (Cold) | Mirror Finish | Zero (Cold Cutting) | NO (Ready to weld) | Fast & Consistent |
The metallurgy matters: If you weld directly over a flame-cut surface (HAZ), you risk cracking. If you use a Milling Machine (like our GL Plate Beveler Series), you are welding on virgin base metal.
My stance: If you’re still grinding flame-cut edges in 2026, you’re not just wasting labor—you’re creating an unsafe work environment. OSHA and HSE inspectors are increasingly cracking down on metal dust exposure.
Plate Bevel Types: It’s Not Just “V” Anymore
In pipe, you are limited to single-sided access. In plate, you often have access to both sides, which opens up the most efficient joint designs: K-Groove and X-Groove.
Left to right: V-Groove, Y-Groove, X-Groove (Double-V), K-Groove
1. V / Y Groove (Single Sided)
Best for: Thinner plates (< 20mm)
The Machine: A standard auto-walking milling machine runs along the top edge once. Done.
My advice: For plates under 20mm, don’t overthink it. V-groove is simple, fast, and gets the job done.
2. X-Groove / Double-V (The Efficiency King)
Best for: Thick plates (> 25mm)
Why? Instead of cutting a massive V on one side (which consumes huge amounts of filler), you cut two smaller V’s on top and bottom.
Benefits:
- Reduces filler metal by 50%
- Balances welding stress to prevent the plate from warping (“butterflying”)
- Faster welding: two smaller welds are faster than one massive weld
The Machine: You need a machine that can mill the bottom side without flipping the heavy plate (like our DMM-90X or DMM-1232).
My experience: Every time I see a fabricator struggling with plate distortion on thick welds, they’re using single-sided V. Switch to X-Groove and the problem disappears.
3. K-Groove (For T-Joints)
Best for: Welding a vertical web to a horizontal flange (Steel structures/Beams)
Challenge: Requires a strictly controlled “Land” (Root face) to ensure the vertical plate sits 90° perfectly. Milling machines guarantee this precision; hand grinding cannot.
→ DMM-1232 Series - Precision land control for perfect T-joint preparation
The Game Changer: Self-Propelled Automation
The single biggest difference between Pipe and Plate machines is Mobility.
- Pipe Machines are stationary or clamped on the pipe.
- Plate Machines (Milling) are Self-Propelled Robots.
You don’t push the machine. You set the angle, engage the drive, and the machine “walks” along the plate edge automatically.
The ROI multiplier: One operator can manage 3 running machines simultaneously.
GL Series auto-walking along a 12m plate edge
My observation: The shops that adopted self-propelled bevelers 5 years ago are now running circles around competitors still using grinders. It’s not even close.
Real Case: The Bridge Builder
A customer manufacturing bridge girders was using 4 workers with grinders to prep 12-meter long plates. It took them 2 hours per plate.
I asked: “What’s your cost per meter of bevel prep?”
They didn’t know. Nobody had calculated it.
Switch: They bought one GL Plate Beveler.
Result: The machine milled the entire 12m length in 20 minutes.
| Metric | Manual Grinding | GL Edge Milling | Improvement |
|---|---|---|---|
| Time per 12m plate | 2 hours | 20 minutes | 83% faster |
| Workers required | 4 | 1 | 75% less labor |
| Edge consistency | Variable (±3°) | Perfect (±0.5°) | Welding robot compatible |
| Metal dust exposure | High | Zero | HSE compliance |
The kicker: The consistent bevel angle made the automatic welding robot’s job flawless. Before, the robot had to compensate for grinding inconsistencies. After, it ran at full speed.
ROI: The labor cost dropped by 90%. Machine paid for itself in 4 months.

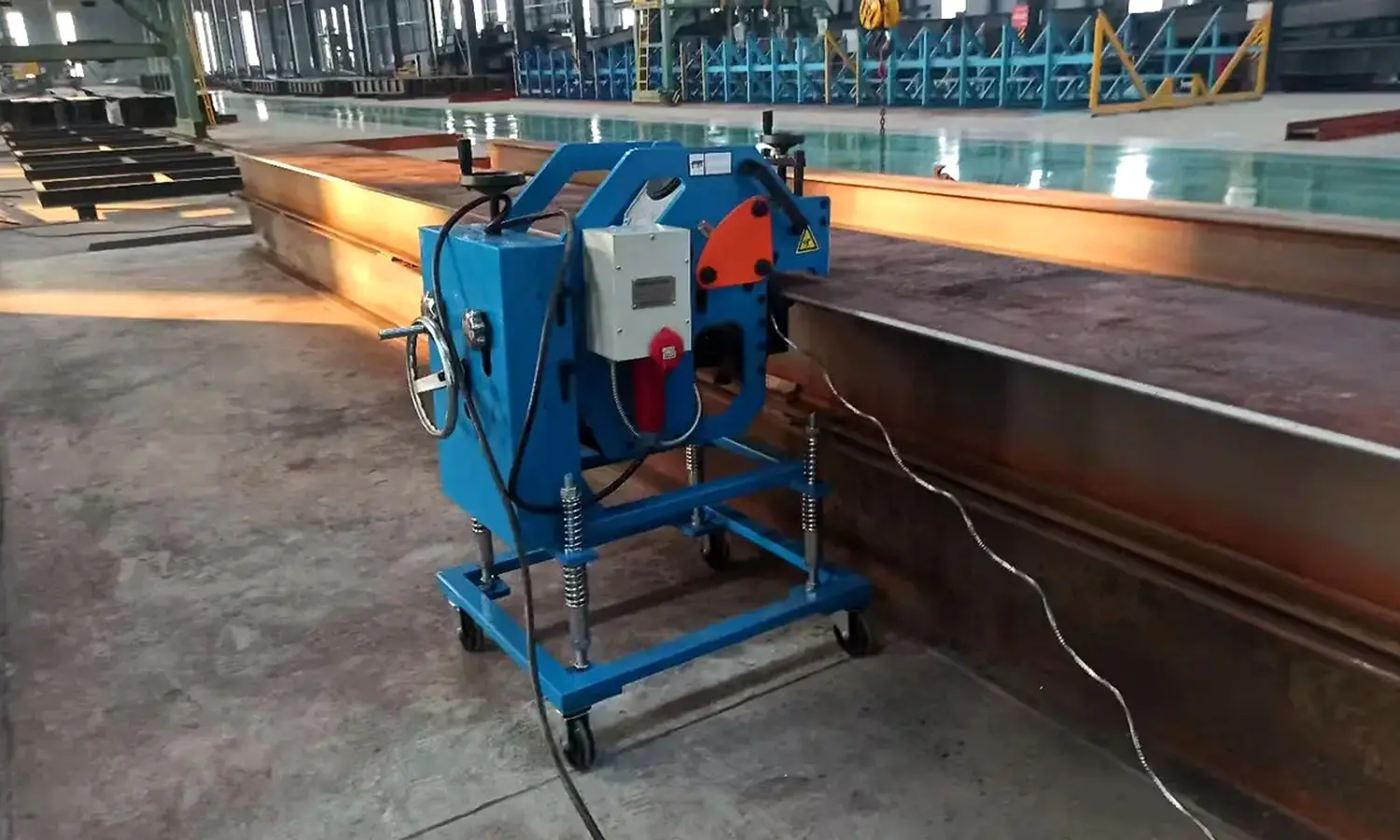

GL Series edge milling machine working on bridge girder plates
Equipment Selection Guide
Don’t overbuy. Plate milling falls into three categories:
For Curved Plates & Irregular Pieces
Scenario: You have curved plates, holes to bevel, or small irregular pieces.
Solution: Handheld Milling
→ SKF-15 Handheld - Portable, lightweight, goes where big machines can’t. Perfect for curves and holes.
My advice: Every plate shop needs at least one handheld beveler. It’s your “Swiss Army knife” for the jobs that big machines can’t reach.
For Long Straight Plates (Standard Duty)
Scenario: You have long straight plates, standard V or Y grooves.
Solution: Auto-Walking Edge Milling
→ GL Plate Beveler Series - The industry standard. Clamps to the edge, walks automatically. Covers V, Y grooves.
For Heavy Plates & Double-Sided Bevels
Scenario: You have HUGE plates and need X-Groove / K-Groove / Double-V bevels.
Solution: Heavy-Duty Edge Milling Machine
→ DMM-90X - 180° flip capability. Can mill the underside without flipping the plate (huge safety & time saver).
→ DMM-900X Series - For the heaviest industrial applications.
→ DMM-1232 Series - Maximum capacity for shipbuilding and heavy structure.
For High-Volume Production
Scenario: You need stationary, production-line beveling.
Solution: Benchtop/Stationary Milling
→ DZ Benchtop Series - Fixed installation, consistent output for production environments.
| Your Scenario | Recommended Solution | Why |
|---|---|---|
| Curved plates, irregular pieces | SKF-15 Handheld | Portable, flexible, handles curves |
| Long straight plates (< 25mm) | GL Plate Beveler | Auto-walking, industry standard |
| Thick plates, X-Groove / K-Groove | DMM-90X | 180° flip, double-sided capability |
| Maximum capacity (shipbuilding) | DMM-1232 | Heavy-duty, precision land control |
| Production line, high volume | DZ Benchtop | Stationary, consistent output |
Summary: Efficiency is a Choice
The era of manual grinding for heavy plate is over. It’s too slow, too dirty, and too expensive.
- Stop Grinding: It’s a bottleneck.
- Start Milling: It’s a process accelerator.
- Think Double-Sided: Use X-Grooves on thick plates to save 50% on welding costs.
- Automate: One operator, three machines. That’s the future.
Ready to Ditch the Grinders?
Tell me:
- Plate thickness range
- Material type (Carbon Steel, Stainless, Hardox?)
- Typical plate length
I’ll recommend the right Walking Speed and Cutter Head configuration to double your prep efficiency.
