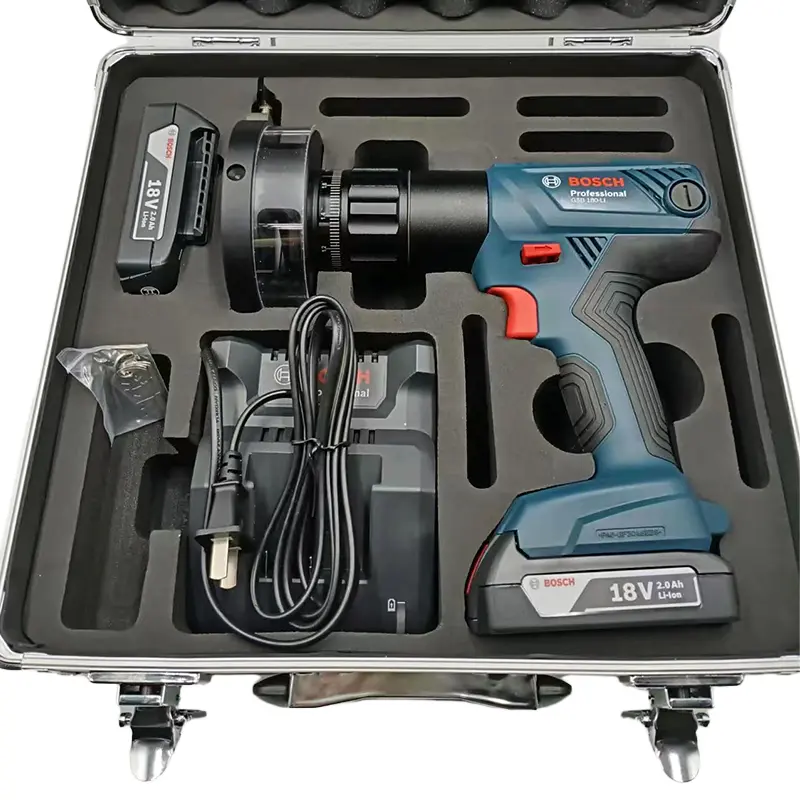

LPM cordless tube facer kit in its carry case — 18 V drive, battery, charger and facing head

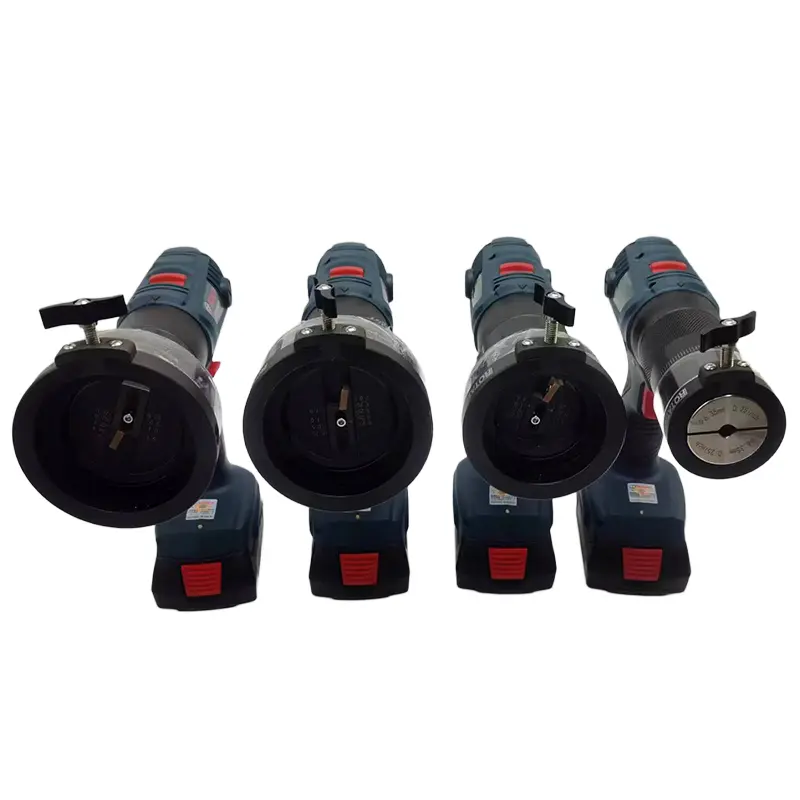

LPM cordless tube facers lined up with facing heads for different tube sizes

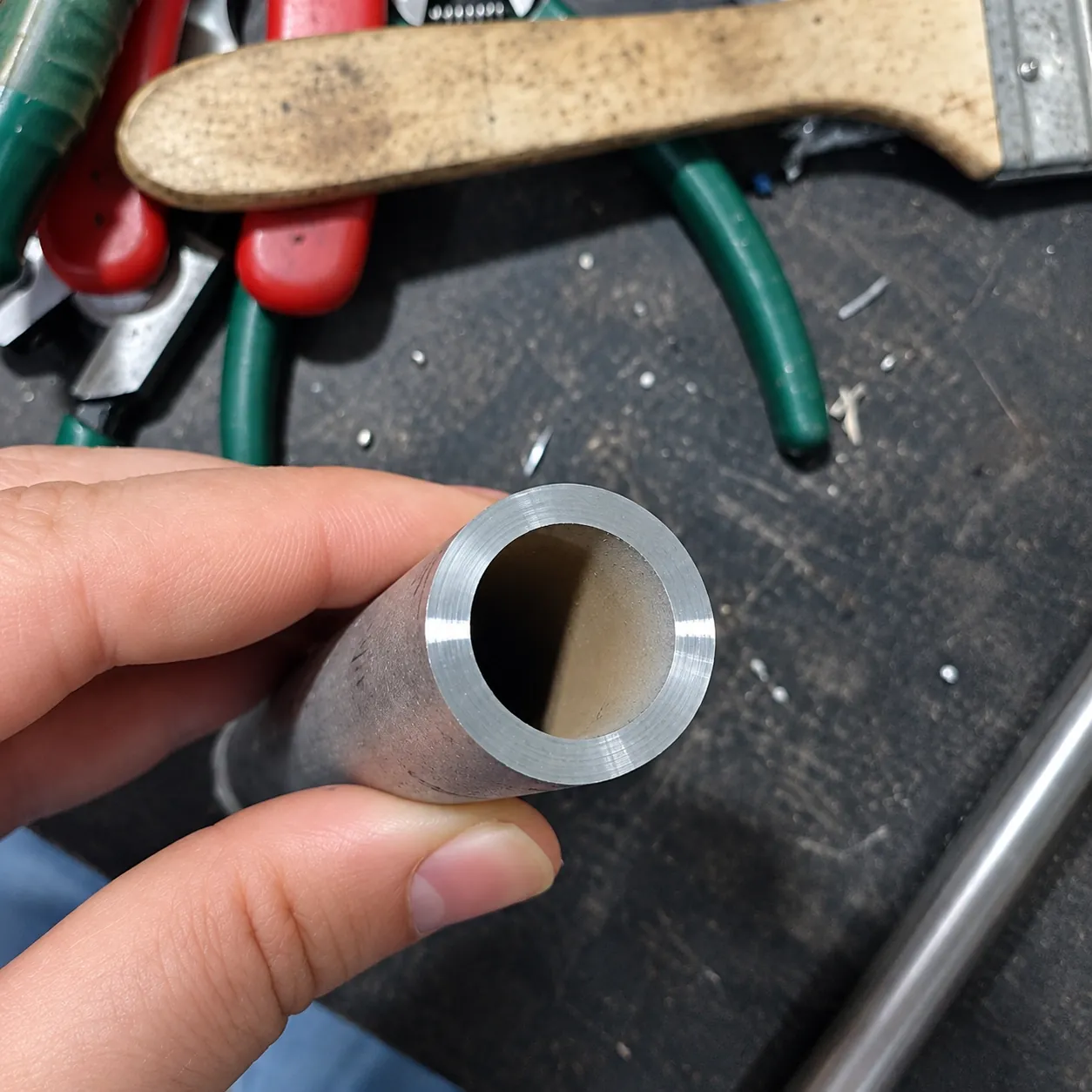

Tube end faced square and burr-free by the LPM

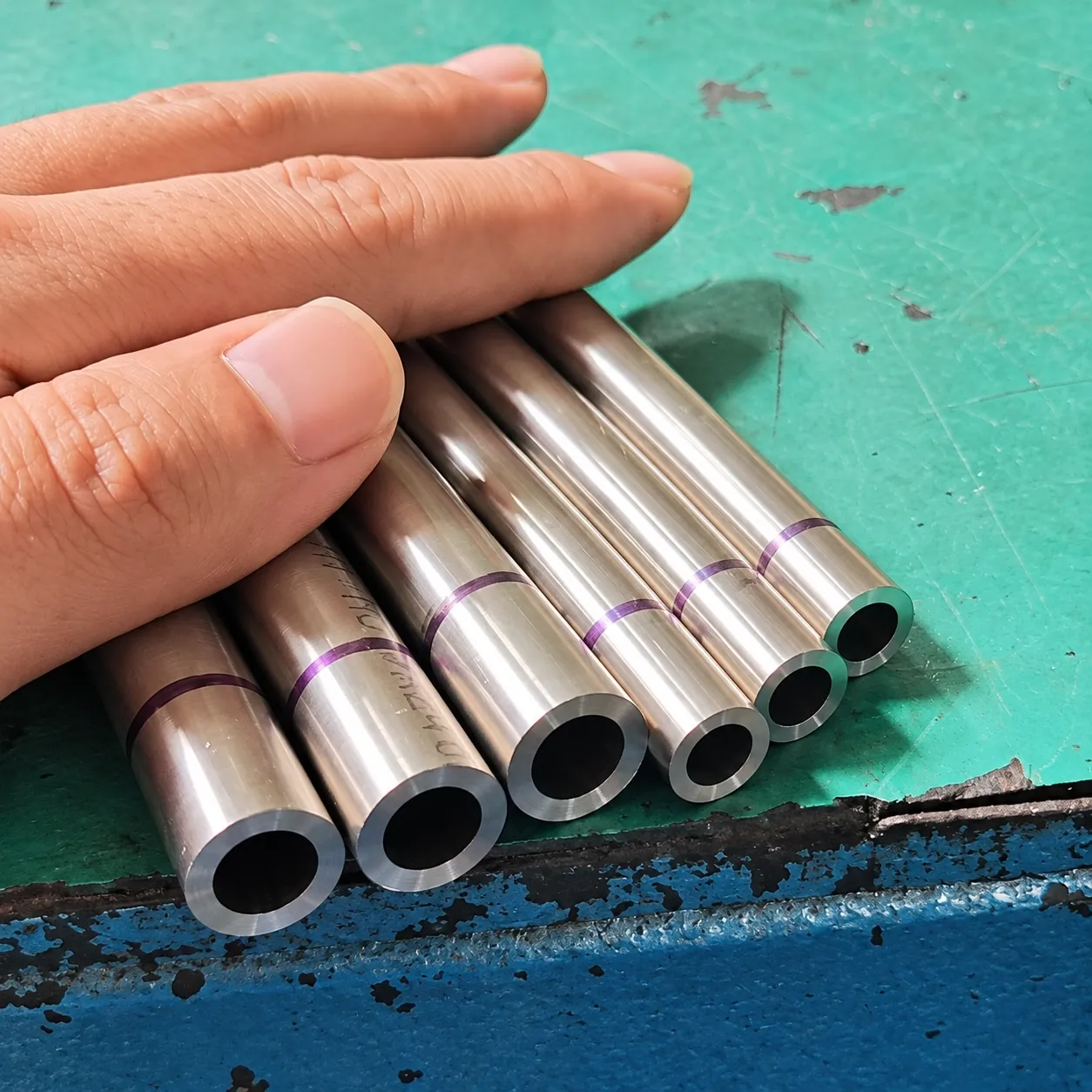

Batch of stainless tubes faced on the LPM, ready for orbital welding

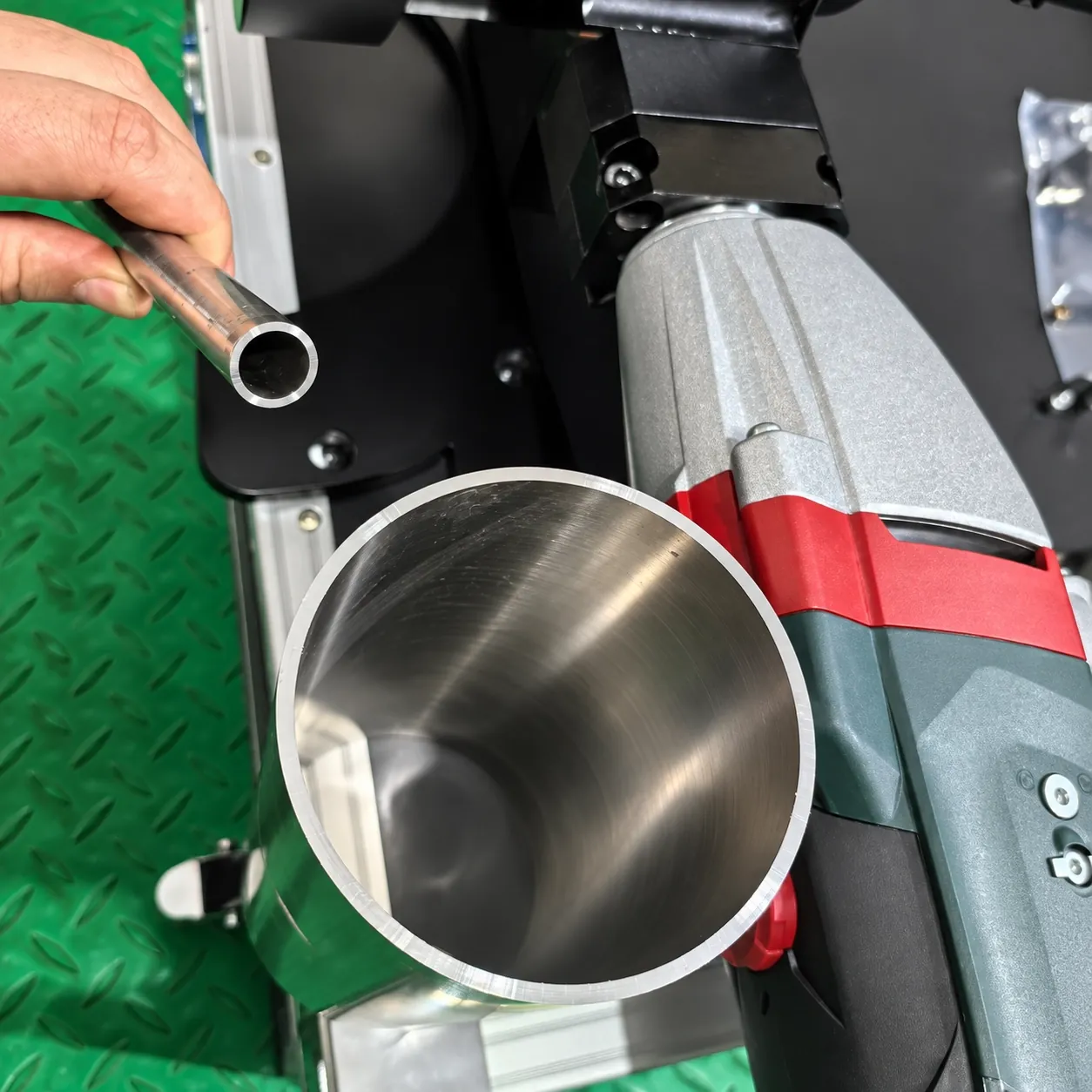

Large-diameter sanitary tube with a faced end beside the LPM

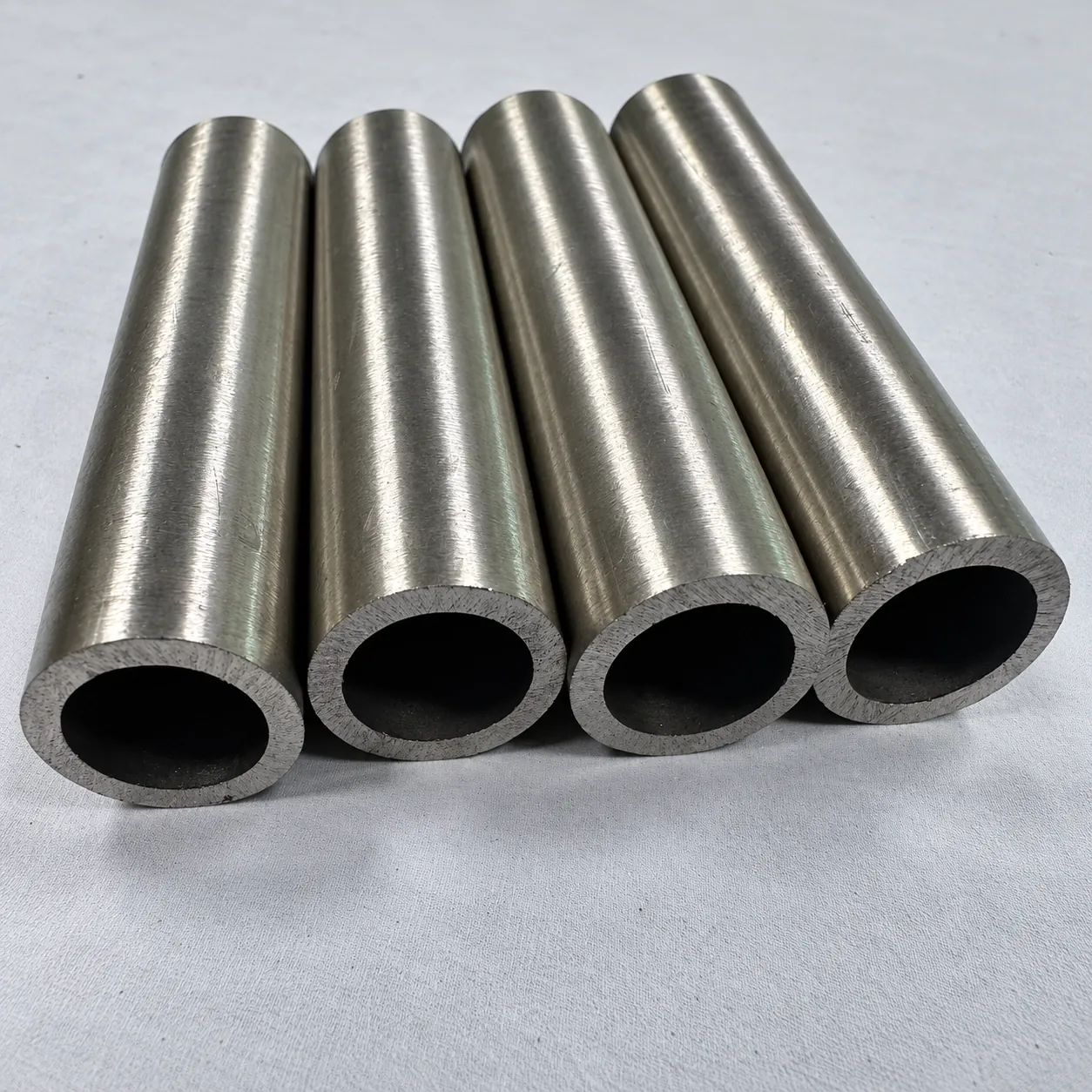

Stainless steel thick-wall tubes with ends faced square on the LPM

1 / 7

LPM · DC Series ASME BPE ISO 14644 cleanroom-compatible

LPM Cordless Tube Facing Machine (Battery-Powered)

Name: LPM Cordless Tube Facing Machine (Battery-Powered)
Brand: Kedes Machine
SKU: LPM · DC Series

18 V battery-powered tube facer for high-purity stainless tubing in cleanrooms and field-install conditions where AC cords are forbidden or impractical. Full-contact stainless collets, micro-feed scale to 0.1 mm, burr-free cold cut hand-off to orbital welding.

Tube OD range

Ø 3.17 – 63.5 mm

Wall thickness

0.5 – 3 mm

Power

18 V Li-ion (Bosch / Metabo)

Feed precision

0.1 mm increments

TYPICAL REPLY · 1 WORKING SHIFT (GMT+8)

01 Model Comparison

Pick your size — 4 models in the series.

	LPM-1.0 DC Ø 3.17 – 25.4 mm · 4.8 kg	LPM-1.5 DC Ø 6 – 38.1 mm · 6.2 kg	LPM-2.0 DC Ø 9.52 – 50.8 mm · 6.8 kg	LPM-2.5 DC Ø 9 – 63.5 mm · 7.5 kg
Tube OD range	3.17 – 25.4 mm	6 – 38.1 mm	9.52 – 50.8 mm	9 – 63.5 mm
Wall thickness	0.5 – 3 mm	0.5 – 3 mm	0.5 – 3 mm	0.5 – 3 mm
Battery	18 V · 2.0 Ah	18 V · 2.0 Ah	18 V · 2.0 Ah	18 V · 2.0 Ah
Cutter speed	420 r/min	420 r/min	420 r/min	420 r/min
Net weight (with battery)	4.8 kg	6.2 kg	6.8 kg	7.5 kg
Collet system	Full-contact SS	Full-contact SS	Full-contact SS	Full-contact SS
Quote this model

02 Working Principle

Why cordless matters in cleanroom and field-install work

Semiconductor fabs, pharmaceutical WFI install rooms and biotech process bays restrict trailing AC cords — they catch on scaffolding, drag particles across cleanroom floors, and present trip hazards in dense pipe runs. The LPM Cordless lifts those constraints: the operator carries the tool and battery, faces a tube, moves on. The 18 V Bosch / Metabo battery standard is what every field crew already stocks — no proprietary battery chemistry, no specialized chargers. Full-contact stainless collets clamp around the full circumference of the tube (rather than three- or four- point contact), eliminating witness marks on EP and BA tube finishes.

LPM · DC Series working principle diagram

03 Key Features

Built for the job site.

// 01

18 V cordless on Bosch / Metabo standard

Uses the industry-standard 18 V Li-ion battery platform. Crew already stocks spares for cordless drills and grinders — no new battery inventory required.

// 02

Full-contact stainless collets

Annular collets clamp the full tube circumference rather than three- or four-point contact. No witness marks on electropolished (EP) or bright-annealed (BA) sanitary tube — the standard requirement for USP class VI and ASME BPE service.

// 03

0.1 mm micro-feed precision

Calibrated feed scale lets operator dial in exact face-off depth. Critical for orbital welding fit-up where face-to-face gap tolerance is typically ±0.1 mm.

// 04

Cold cut — burr-free, no HAZ

Carbide insert at moderate feed produces an oxide-free, burr-free end ready for orbital welding without deburring or pickling. Preserves the chromium-oxide passive layer on stainless.

// 05

4.8 – 7.5 kg — single-operator continuous use

Sized for fatigue-free shift work in overhead and confined-space install positions where AC tools are too heavy or restricted.

// 06

Four sizes cover 1/8" to 2.5"

Covers the OD range of standard sanitary tube (BPE 1/4" through 2.5") used in pharma WFI, semiconductor gas distribution, and food-grade process loops.

04 Industry Applications

Where this series earns its keep.

Semiconductor cleanroom installs

UHP gas-line and process-cooling tube install in semiconductor fab cleanrooms. Cordless operation eliminates AC cord particle-shedding and trip hazards.

See semiconductor cleanroom installs solutions

Pharmaceutical WFI & bioprocess install

WFI (Water for Injection), CIP/SIP and bioprocess transfer-line install — small-bore sanitary tubing where cleanroom rules forbid AC tools.

See pharmaceutical wfi & bioprocess install solutions

Food, dairy & brewery sanitary lines

3-A and EHEDG-spec process tube install in food plants and breweries — cordless allows movement across washdown areas without GFI re-routing.

See food, dairy & brewery sanitary lines solutions

06 FAQ

Common questions about the LPM · DC Series.

Can't find your answer?

Cordless or AC — which LPM variant should I order?

Choose DC (cordless) for install work in cleanrooms, overhead and hard-to-cord positions, and for any environment where trip hazards or AC routing complicate work. Choose AC for bench-mounted batch production where the tube comes to the operator — AC delivers constant torque indefinitely and handles larger OD (up to 114 mm) and thicker wall (up to 5 mm).

Will the 18 V battery handle a full shift?

Yes — typical 2.0 Ah battery cycles 100 – 200 facing operations on 0.5 – 1.5 mm wall before swap. Crews typically carry two batteries and a charger in the kit for continuous operation.

Does the full-contact collet handle EP and BA tube finishes?

Yes — that is the design intent. Annular collet contact distributes grip force around the tube's full circumference, with no point-loading that would scratch or burnish the passivated surface. Tube exits the collet with no witness marks visible under 10× inspection.

Can it face a tube already welded into a manifold?

Yes, provided you have axial clearance for the machine body — typically the model's body length (≈ 150 – 250 mm depending on size). The tube end is gripped from the OD by the collet, so the bore can be welded in place without removing the tube from the system.
