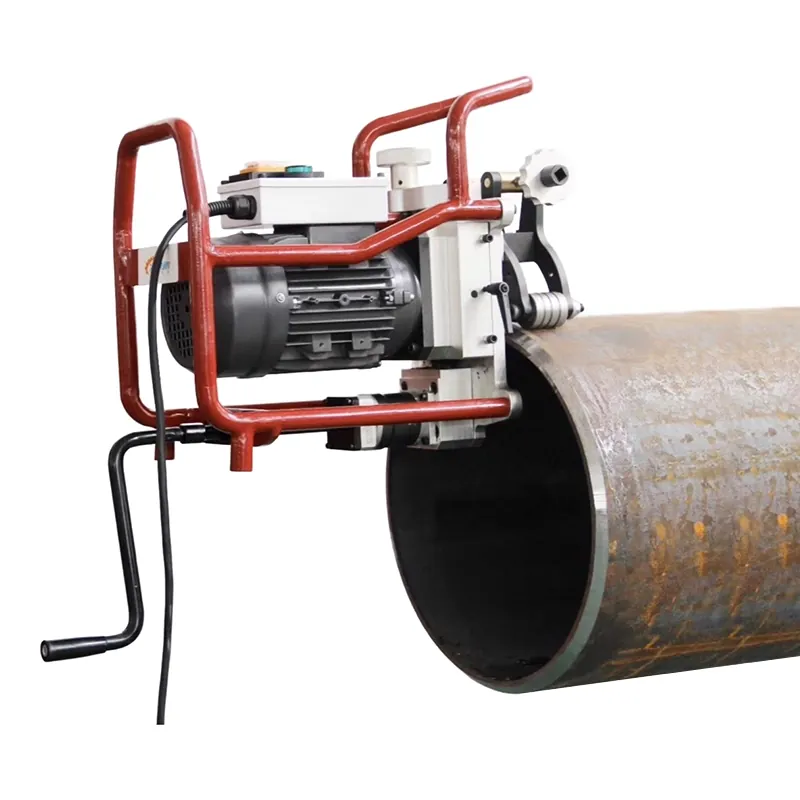

SKF-150L beveling large-diameter pipeline on site

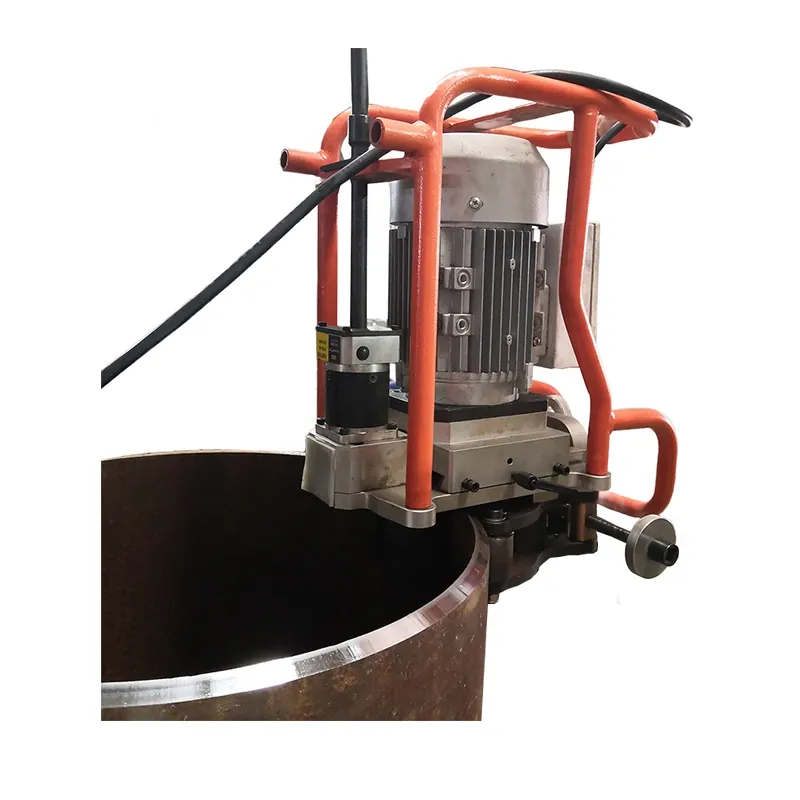

SKF-150L on curved storage-tank shell plate

1 / 6

SKF-150L · Capless ASME B16.25 EN ISO 9692-1

SKF-150L Capless Portable Edge Miller

Name: SKF-150L Capless Portable Edge Miller
Brand: Kedes Machine
SKU: SKF-150L · Capless

Portable cold edge miller that crawls along the workpiece edge instead of clamping into a fixed frame. Bevels pipe Ø > 114 mm — without an upper size limit — and flat plate from the same machine. 35 kg single-operator unit for field maintenance, large-diameter pipeline and tank fabrication.

Working range

Pipe ID > 114 mm (unlimited) + flat plate

Max bevel width

20 mm

Bevel angles

30° / 37.5° / 45°

Net weight

35 kg

TYPICAL REPLY · 1 WORKING SHIFT (GMT+8)

01 Model Comparison

Specifications.

	SKF-150L Single configuration · 3-phase 380 V
Working range (pipe ID)	> 114 mm (no upper limit)
Working range (plate)	Unlimited
Max bevel width	20 mm
Clamp thickness range	5 – 25 mm
Bevel angles	30° / 37.5° / 45°
Motor power	2200 W
Voltage	AC 3-phase 380 V / 50 Hz
Spindle speed	2000 r/min
Net weight	35 kg
Surface finish	Ra 3.2 – 6.3 μm
Quote this model

02 Working Principle

How a capless edge miller works

Conventional pipe bevelers — chuck-type, cam-lock, internal-expansion or split-frame — all clamp into a fixed frame whose body diameter dictates the maximum pipe OD they can grip. That ceiling is typically 1 – 2 m. The SKF-150L uses a different architecture: a clamp jaw grips the workpiece edge itself (pipe wall or plate edge), and the cutting head crawls along that edge under operator guidance. Because the machine never encloses the pipe, there is no upper size limit — it works as readily on a Ø 3 m storage-tank shell as on a Ø 200 mm process line, and equally on flat plate. Cold milling with CNC carbide inserts delivers a Ra 3.2 – 6.3 μm finish without HAZ.

SKF-150L · Capless working principle diagram

03 Key Features

Built for the job site.

// 01

Unlimited pipe diameter — above 114 mm ID

No fixed frame, so no upper size limit. The standard tool for large-bore transmission pipeline, storage-tank shell, and pressure-vessel fabrication where chuck-type machines cannot fit.

// 02

Pipe and plate from one machine

Same clamp and cutting head handle curved and straight edges. Replaces the need for separate pipe beveler + plate edge miller in the field kit.

// 03

35 kg — single-operator portable

Lightweight enough for high-altitude tank work, scaffolded pipeline jobs and confined-space access where heavier machines cannot be carried up.

// 04

CNC-grade carbide tooling

Replaceable carbide inserts deliver Ra 3.2 – 6.3 μm surface finish — directly weld-ready, no secondary grinding or filing required.

// 05

Cold cutting — no HAZ

Pure mechanical milling at moderate spindle speed (2000 rpm). Parent metallurgy preserved on carbon, stainless and alloy plate / pipe.

// 06

Three preset bevel angles

30°, 37.5° and 45° preset stops cover the common single-side and X-bevel standards per ASME B16.25 and EN ISO 9692-1.

04 Industry Applications

Where this series earns its keep.

Large-diameter transmission & gathering line

On-site bevel prep for transmission pipeline where chuck-type and split-frame machines hit their upper size limit (≥ 1 m OD).

See large-diameter transmission & gathering line solutions

Storage tank & pressure vessel shell

Beveling curved shell plates and dished heads during tank and vessel fabrication — same machine handles both the plate seam prep and the nozzle-stub-out work.

See storage tank & pressure vessel shell solutions

Shipyard module & deck plate fabrication

Plate edge prep on hull module assembly and large pipe work on engine-room and ballast systems — one machine covers both workflows in a yard.

See shipyard module & deck plate fabrication solutions

06 FAQ

Common questions about the SKF-150L · Capless.

Can't find your answer?

When do I pick SKF-150L over a chuck-type (SOC) or split-frame (OC)?

When pipe diameter exceeds the upper limit of clamped machines — typically Ø > 1 m for chuck-type, Ø > 1.8 m for split-frame — or when you need one machine that handles both pipe and plate. SKF-150L's tradeoff is that it requires operator guidance along the edge; clamped machines are semi-automatic once installed. For high-volume repeat work on standard sizes, a chuck-type SOC is faster per joint.

Can it bevel inside a pipe or only outside?

Outside / OD edge only. The clamp grips the pipe wall, with the cutting head working the OD edge. For ID-mounted prep, use the internal-expansion ISE / ISP series instead.

What's the surface finish like?

Ra 3.2 – 6.3 μm with CNC carbide inserts — directly weld-ready. No secondary grinding or wire-brushing required to meet ASME B31 weld-prep surface requirements.

Is there a smaller pipe limit?

Yes — the clamp jaw geometry requires a minimum pipe ID of 114 mm (≈ 4.5"). Below that, use the cam-type (SCB / SCP) or ISC external-clamping bevelers, which are sized for small-bore work.
