SJ Series · Angle Grinder ISO 11148-7 (pneumatic grinders) ATEX hazardous-area drive
SJ Pneumatic Angle Grinder (Standard & Vacuum Variants)
Industrial pneumatic angle grinder for heavy weld-bead removal and surface prep in shipyards, foundries and process plants — spark-free for hazardous zones. Standard SJ100 – SJ300 covers disc 100 – 300 mm; SJ125H adds an integrated dust-vacuum bag for confined-space work.
Disc size
100 – 300 mm (4" – 12")
Rated power
0.60 – 2.20 kW
Air pressure
0.63 MPa standard
Dust handling
Open (SJ100-300) / vacuum bag (SJ125H)
TYPICAL REPLY · 1 WORKING SHIFT (GMT+8)
01 Model Comparison
Pick your size — 5 models in the series.
| SJ100 4" disc · 0.60 kW · 1.8 kg | SJ125H 5" disc + vacuum dust bag · 0.65 kW · 2.5 kg | SJ150 6" disc · 0.74 kW · 2.2 kg | SJ230 9" disc · 1.20 kW · 3.4 kg | SJ300 12" disc · 2.20 kW · 5.0 kg | |
|---|---|---|---|---|---|
| Wheel size | 100 mm | 125 mm | 150 mm | 230 mm | 300 mm |
| Free speed (rpm) | ≤ 14,000 | ≤ 12,000 | ≤ 10,000 | ≤ 6,500 | ≤ 6,000 |
| Rated power | 0.60 kW | 0.65 kW | 0.74 kW | 1.20 kW | 2.20 kW |
| Air consumption | 17 L/s | 18 L/s | 21 L/s | 35 L/s | 35 L/s |
| Net weight | 1.8 kg | 2.5 kg | 2.2 kg | 3.4 kg | 5.0 kg |
| Dust collection | — | Integrated vacuum bag | — | — | — |
| Noise | — | 85 dB(A) | — | — | — |
| Quote this model |
03 Key Features
Built for the job site.
// 01
Spark-free pneumatic drive
ATEX-friendly for hazardous areas — refinery, offshore platform, ship cabin and chemical-plant work where electric grinders are prohibited.
// 02
Disc range 4" to 12"
SJ100 for detail work, SJ300 for heavy weld-bead stock removal. One product family for the full disc range a shop typically stocks.
// 03

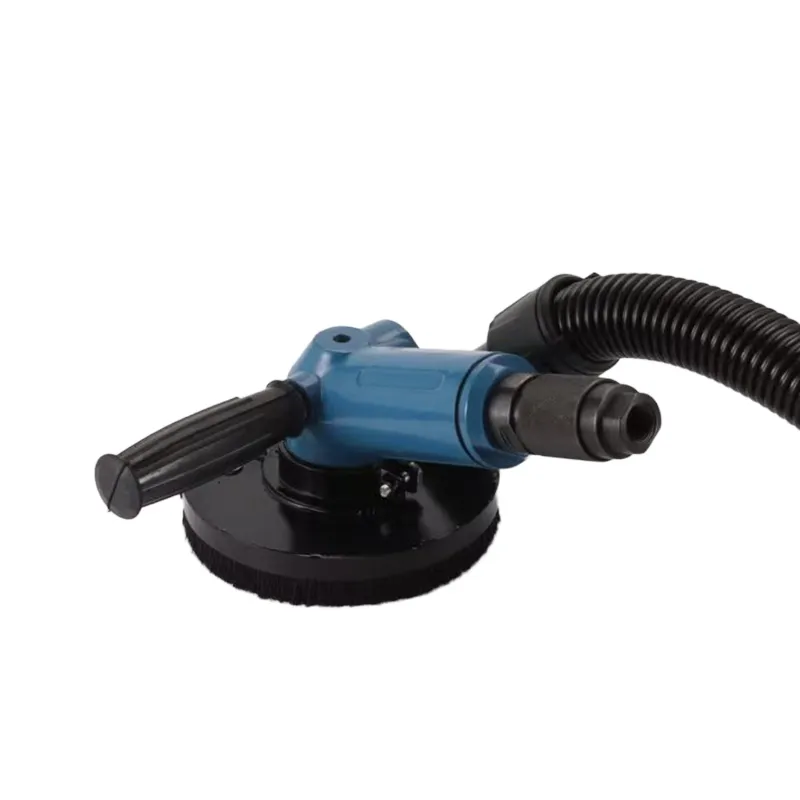

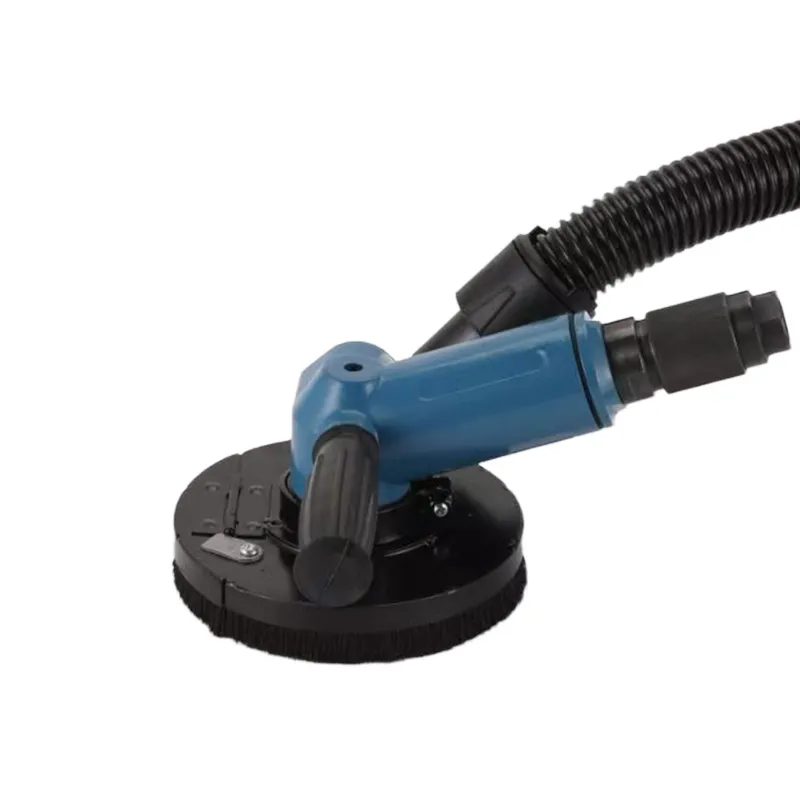

SJ125H vacuum variant — confined-space safe
Integrated cyclone dust bag captures grinding swarf at source. Required tool for ship-cabin, boiler-cavity and pressure-vessel internal work where airborne dust must be controlled.
// 04
High torque under load
SJ300 (2.20 kW) maintains speed when grinding heavy weld beads on structural steel and castings — the typical limitation of underpowered competing grinders.
04 Industry Applications
Where this series earns its keep.
Shipbuilding & hull weld finishing
Hull-plate weld bead grinding, casting cleanup and surface prep. SJ125H vacuum variant for cabin and tank interior work.
See shipbuilding & hull weld finishing solutions
Casting & foundry trim
Riser and gate removal on steel and iron castings — SJ230 / SJ300 standard for foundry trim.
See casting & foundry trim solutions
Refinery & vessel-interior maintenance
Spark-free grinding inside pressure vessels and refinery hazardous areas during turnarounds.
See refinery & vessel-interior maintenance solutions
06 FAQ
Common questions about the SJ Series · Angle Grinder.
Can't find your answer?
When do I need the SJ125H vacuum variant?
Any work in a confined space — ship cabin, boiler cavity, tank interior, cleanroom-adjacent area — where airborne grinding dust would exceed PEL (permissible exposure limit) for the operator. The vacuum bag captures ~95% of swarf at source, eliminating the respirator-and-blowdown workflow required with open grinders in confined work.
What air supply does the SJ300 need?
35 L/s at 0.63 MPa — roughly 4 m³/min flow. A 7.5 kW shop compressor with adequate receiver supports one SJ300 continuously. For multiple simultaneous SJ230 / SJ300 grinders, size compressor capacity per the total air consumption sum.
Disc size selection?
4" – 5" (SJ100, SJ125H) for finishing and detailed work. 6" (SJ150) for general-purpose grinding. 9" (SJ230) for medium-volume weld trim. 12" (SJ300) for heavy structural and foundry stock removal where large disc surface area and high torque earn the weight.
