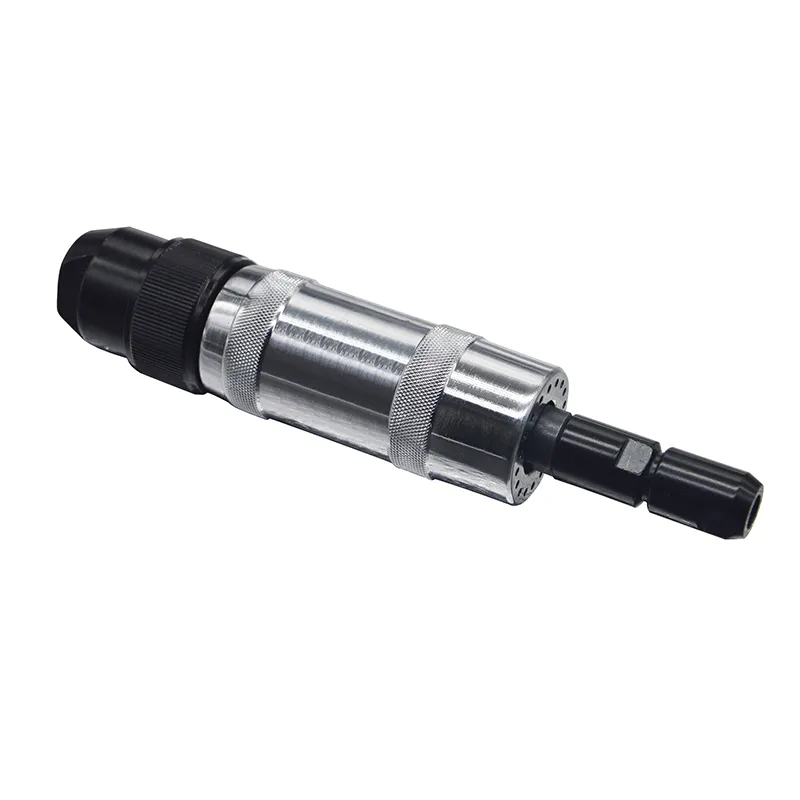

S Series gear chamfering grinding head detail

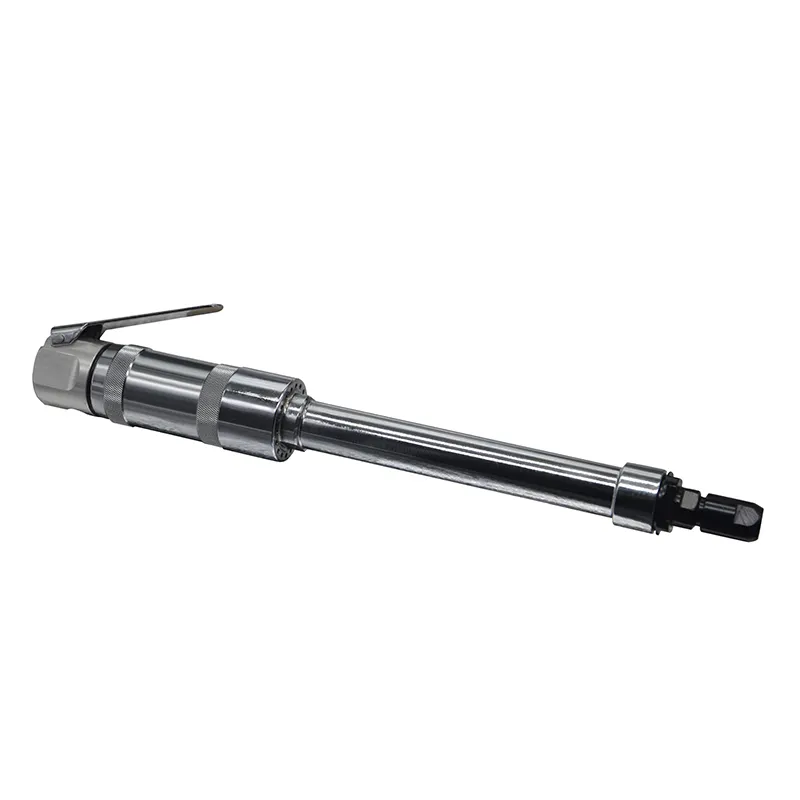

Gear chamfering grinder on automotive ring gear

1 / 3

S35A · S35 · S60 Gear Series ISO 11148-7 (pneumatic grinders) ISO 1328 gear quality (downstream finishing reference)

S Series Pneumatic Gear-Chamfering Grinding Head

Name: S Series Pneumatic Gear-Chamfering Grinding Head
Brand: Kedes Machine
SKU: S35A · S35 · S60 Gear Series

Specialized pneumatic grinding head for chamfering and finishing gears, inner rings and sprockets — high-speed (15,000 – 16,000 rpm) operation for the burr and defect removal that production gear cells require. S60-470 extended-reach variant for inside-bore work.

Wheel size

85 – 125 mm

Free speed

15,000 – 16,000 r/min

Rated power

0.30 – 0.37 kW

Drive

Spark-free pneumatic, ≤ 85 dB(A)

TYPICAL REPLY · 1 WORKING SHIFT (GMT+8)

01 Model Comparison

Pick your size — 3 models in the series.

	S35A 85 mm wheel · 0.30 kW · 1.6 kg	S35 100 mm wheel · 0.37 kW · 2.0 kg	S60-470 125 mm wheel · extended reach · 2.2 kg
Rated power	0.30 kW	0.37 kW	0.37 kW
Free speed	≤ 16,000 r/min	≤ 15,000 r/min	≤ 15,000 r/min
Wheel size	85 mm	100 mm	125 mm
Air consumption	15 L/s	17 L/s	17 L/s
Net weight	1.6 kg	2.0 kg	2.2 kg
Quote this model

03 Key Features

Built for the job site.

// 01

Specialized gear geometry

Designed specifically for the burr and defect removal that gear, ring and sprocket finishing requires. Wheel profile and balance differ from general-purpose grinders.

// 02

15,000 – 16,000 r/min spindle

High-speed operation matches the small contact patch of gear-tooth chamfering — produces a uniform finish on the chamfer flat without burning the tooth flank.

// 03

S60-470 extended reach

Long-shaft variant for inside-bore work on ring gears, internal splines and bearing-race finishing — reaches geometry inaccessible to standard grinders.

// 04

≤ 85 dB(A) noise

Quieter than typical pneumatic die grinders. Meets workshop noise limits in automotive and machinery production cells where multi-station grinding generates additive noise exposure.

// 05

Integrates into mechanized cells

Spark-free pneumatic drive is compatible with automated gear-finishing cells where electric tooling introduces ignition risk in oil-mist atmospheres.

04 Industry Applications

Where this series earns its keep.

Automotive transmission & ring gear

Chamfering and defect removal on automotive ring gears, sprockets and bearing races in production volumes. Standard tool in transmission plants.

See automotive transmission & ring gear solutions

Construction machinery drive components

Mass-production grinding for heavy-duty gears, sprockets and drive components in earth-moving equipment and industrial gearbox manufacturing.

See construction machinery drive components solutions

Precision-machinery & bearing fab

Inner-ring and bearing-race finishing in precision-machinery manufacturing where surface quality directly controls bearing life.

See precision-machinery & bearing fab solutions

06 FAQ

Common questions about the S35A · S35 · S60 Gear Series.

Can't find your answer?

Why a specialized gear grinder vs general die grinder?

Wheel profile, balance, and spindle stiffness are tuned for the light-contact tooth-flank chamfering work that defines gear finishing. General die grinders work for one-off gear repair, but production gear cells where tooth-by-tooth chamfering must be consistent need the specialized head.
