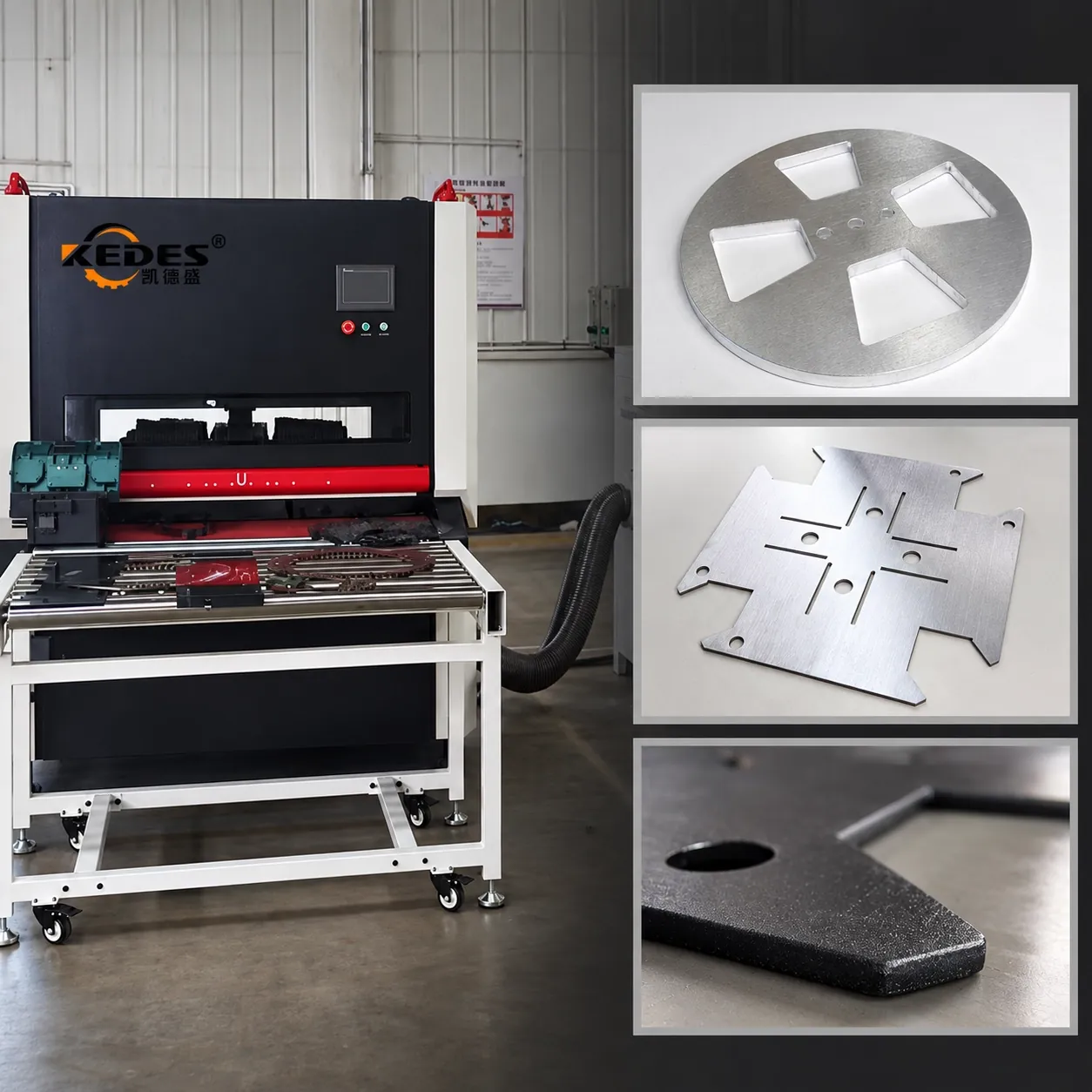

Deburring machine with conveyor infeed table, and laser-cut parts with deburred, edge-rounded edges

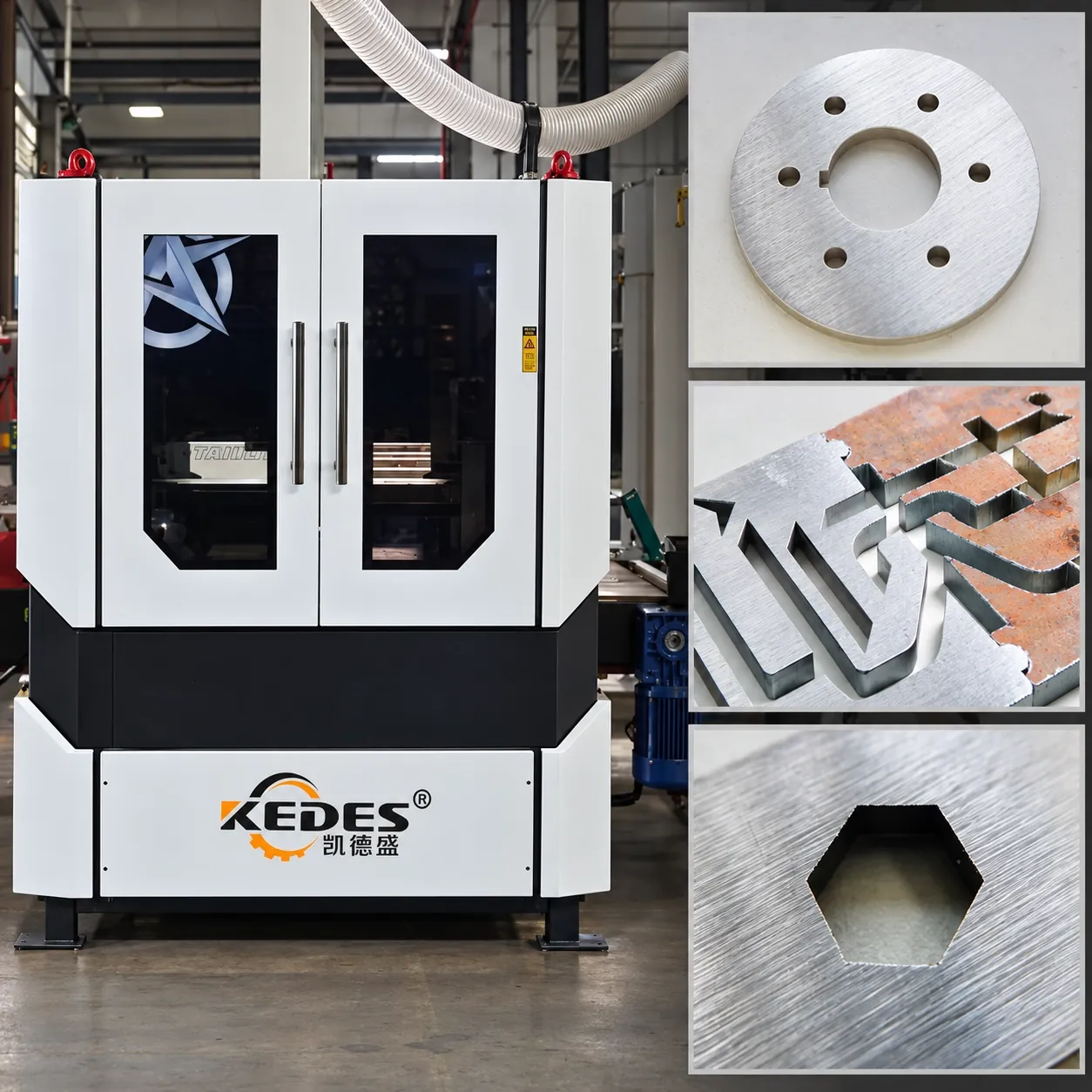

Enclosed deburring machine, with deburred laser-cut sample parts

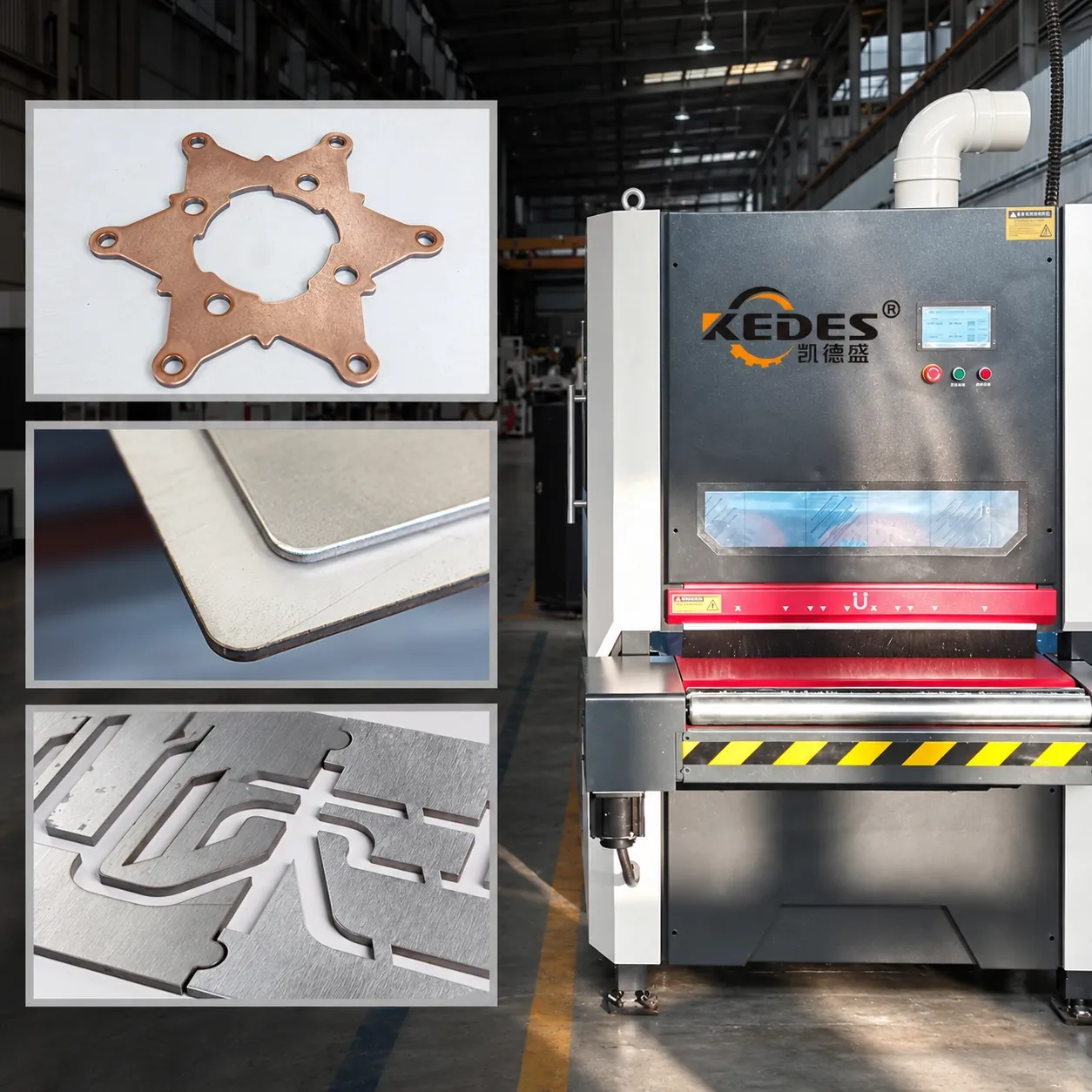

Deburring machine in a fabrication shop, with deburred copper and steel parts

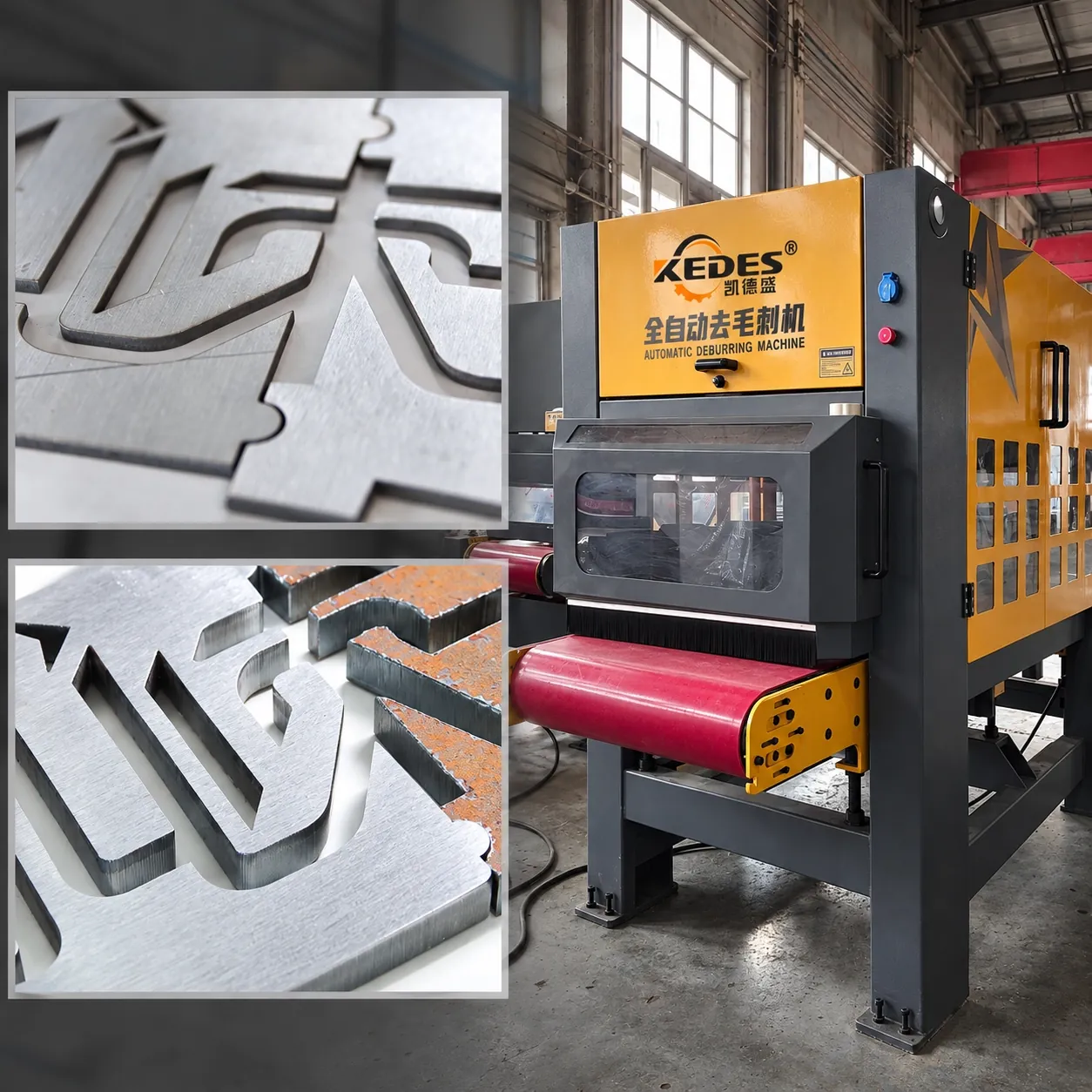

Fully automatic deburring line with belt conveyor, and laser-cut parts before and after deburring

1 / 5

SQ · SSQ · SS · R-R · SM Series ISO 9013 thermal-cut surface quality DIN EN 10088 stainless surface finish

Wide-Belt Slag Removal & Surface Finishing System

Name: Wide-Belt Slag Removal & Surface Finishing System
Brand: Kedes Machine
SKU: SQ · SSQ · SS · R-R · SM Series

Wide-belt sheet-metal finishing system covering the full range from heavy plasma slag removal to fine stainless hairline finish. Seven configurations cover single- and double-belt, with optional integrated roller-brush edge rounding, single- or double-sided processing, on plate up to 100 mm thick and 1300 mm wide.

Working width

1000 – 1300 mm

Plate thickness

0.5 – 100 mm

Functions

Slag · oxide · edge round · hairline

Configurations

Belt-only · belt+brush · double-sided

TYPICAL REPLY · 1 WORKING SHIFT (GMT+8)

01 Model Comparison

Pick your size — 7 models in the series.

	SS1000 Slag removal · 1 belt · 26.4 kW	SQ1000 Light slag + deburr · 1 belt + 4 brush · 30 kW	R-R 1000 Polishing / hairline · 2 belt · 22 kW	SSQ1000 Heavy slag + deburr · 2 belt + 4 brush · 38 kW	SSQ1300 Wide format · 2 belt + 4 brush · 47 kW	SSQ1000-L Premium · 2 belt + 4 brush + hairline · 44 kW	SM1000R-R Double-sided · 2+2 belt · 64 kW
Primary function	Heavy slag removal	Light slag + deburr	Polishing / hairline	Heavy slag + deburr	Heavy slag + deburr (wide)	Premium slag + deburr + hairline	Double-sided slag / polish
Belt configuration	1 wide belt	1 belt + 4 brush	2 belt	2 belt + 4 brush	2 belt + 4 brush	2 belt + 4 brush	2 upper + 2 lower belt
Working width	1000 mm	1000 mm	1000 mm	1000 mm	1300 mm	1000 mm	1000 mm
Plate thickness	0.5 – 80 mm	0.5 – 80 mm	0.5 – 80 mm	0.5 – 80 mm	0.5 – 80 mm	0.5 – 80 mm	2 – 100 mm
Total power	26.4 kW	~30 kW	~22 kW	38 kW	47 kW	44 kW	64 kW
Conveying speed	0.5 – 10 m/min	0.5 – 10 m/min	0.5 – 10 m/min	0.5 – 10 m/min	0.5 – 7.5 m/min	0 – 12 m/min	0.5 – 8 m/min
Net weight	1600 kg	~3200 kg	2000 kg	3586 kg	4200 kg	3858 kg	3800 kg
Quote this model

02 Working Principle

How wide-belt slag removal works

A continuous abrasive belt — typically 1020 mm wide on the 1000 mm working width models — runs over a rigid contact roller above the conveyor. Sheet parts enter on a vacuum + magnetic conveyor bed; the contact roller's pressure forces the belt against the part surface, abrading slag, oxide and dross uniformly across the full width. Belt grit and contact-roller hardness are chosen per application: a coarse belt over a hard rubber roller for plasma slag removal; a fine belt over a soft contact roller for stainless hairline finishing. The SSQ / SSQ-L configurations add downstream roller-brush stations that round edges after the belt has flattened the surface — combining two finishing steps into one pass. The SM (double-sided) variant adds a mirror set of belts below the conveyor, so both faces of the plate finish in one pass.

SQ · SSQ · SS · R-R · SM Series working principle diagram

03 Key Features

Built for the job site.

// 01

Configurable from one belt to seven stations

Configure by application. SS for pure plasma slag; SQ / SSQ when slag removal must be combined with edge rounding; R-R for hairline finishing; SM when both faces need finishing in one pass.

// 02

Vacuum + magnetic hybrid conveyor

Grips both magnetic (steel) and non-magnetic (aluminum, copper, stainless) parts during high-pressure sanding. Holds parts down to 50 × 50 mm — critical for processing small laser-cut parts without lift-off.

// 03

PLC + touchscreen on premium variants

SSQ1000-L includes PLC with recipe storage for grit selection, contact pressure, and feed rate per material. Eliminates operator dependency on quality-critical jobs like stainless hairline.

// 04

Heavy-duty frame, vibration-damped

1600 – 4200 kg rigid construction. The mass is what makes consistent finish across long production runs possible — light-frame imitators lose surface uniformity within minutes of operation.

// 05

Plasma slag, laser oxide and hairline from one platform

The same architecture handles thermal-cut slag (coarse belt + hard roller) and decorative stainless hairline (fine belt + soft roller). Production shops standardize on one machine type across applications.

// 06

Wet or dry dust collection options

Dry collection for steel-only production. Wet collection mandatory when aluminum is in the mix — aluminum dust + steel sparks is a documented combustion hazard. Both options available on all variants.

04 Industry Applications

Where this series earns its keep.

Plasma & laser cutting service centers

Production-line slag, dross and oxide removal on cut-to-size service-center output. SQ / SSQ configurations dominate this market — combined slag + edge round in one pass replaces two manual operations.

See plasma & laser cutting service centers solutions

Stainless steel fabrication & decoration

Hairline (No. 4 / DIN 2K) finish on stainless panels for kitchen equipment, elevator cars, architectural cladding and appliance bodies. R-R 1000 and SSQ1000-L are the standard tools.

See stainless steel fabrication & decoration solutions

Shipyard plate & module fabrication

Hull-plate slag removal after plasma cutting in shipyards. SM double-sided variant doubles throughput on the bulk plate work that defines yard production.

See shipyard plate & module fabrication solutions

06 FAQ

Common questions about the SQ · SSQ · SS · R-R · SM Series.

Can't find your answer?

I just need to round edges — do I need this or the QC brush deburrer?

QC. The wide-belt system is sized for heavy slag and dross from thermal-cut parts, and for surface finishing (hairline). If your parts come off a laser cutter or stamping press with only sharp edges and light oxide, the QC roller-brush deburrer is the right tool — lower acquisition cost and simpler operation. The wide-belt system makes sense when you have plasma slag, heavy oxide, or a surface finish requirement.

Which variant for stainless steel hairline (No. 4) finish?

R-R 1000 for dedicated polishing work — 2 belts with the right grit progression produce a uniform hairline directly. SSQ1000-L when you need hairline AND deburring on the same parts (2 belts + 4 brushes + PLC recipe control). For heavy-volume production where one side at a time is too slow, the SM double-sided variant.

Plasma slag removal — single belt or double belt?

Single belt (SS1000) for light-to-medium dross from oxygen plasma on thin plate (up to 25 mm). Double belt (SSQ1000 or SSQ1300) for heavy dross from nitrogen plasma on thick plate (> 25 mm) — the first belt breaks the slag, the second belt finishes the surface. SSQ1000-L for heavy slag AND immediate hairline finish on stainless work.

What's the deal with wet vs dry dust collection?

Dry dust collection works for steel-only production. The moment aluminum enters the mix you need wet collection — aluminum dust ignited by steel sparks is a documented combustion hazard (multiple fatal incidents on record). Wet collection traps both metals in a water bath. Specify material mix at quotation and we will configure accordingly.

Can the brushes be retrofitted later?

The SS, R-R and SM models do not include roller brushes. Adding brushes after the fact requires extending the frame for an additional station — possible but expensive. If you anticipate needing edge rounding within 24 months, order an SQ or SSQ variant (belt + brush) from the start.
